Description

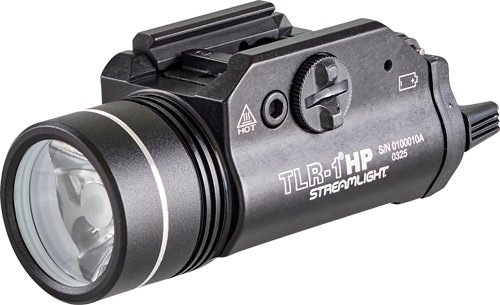

The TLR-1 HP fills the high-candela end of Streamlight's TLR-1 rail-mount light series, producing 65,000 candela — a measure of peak beam intensity — alongside 1,000 lumens of total output and a 510-meter beam distance. This makes it well suited for outdoor and low-light environments where identifying threats or targets at extended distances is a priority. The wide beam pattern is designed to illuminate large areas rather than providing a narrow spotlight, allowing the user to assess peripheral space as well as the point of aim. Run time is 1.75 hours on two CR123A lithium batteries.

The body is machined from 6000-series aluminum with a black anodized finish and is rated IPX7 for waterproof operation. Mounting uses a one-handed snap-on and tighten interface that keeps the user's hands clear of the muzzle during attachment and detachment. The unit includes rail keys for Glock-style, MIL-STD 1913 (Picatinny), Beretta 90two, S&W 99, S&W TSW, and Sig P320 rails, making it compatible with a wide range of pistol and long-gun platforms. The ambidextrous momentary/steady paddle switch allows flexible operation from either side of the firearm, and a double-tap of the momentary paddle within 0.4 seconds activates a strobe mode, which can be disabled. The TLR-1 HP has been extensively live-fire tested for impact resistance and is assembled in the USA. Streamlight's signature silver band encircles the head of the unit. A limited lifetime warranty is included.

Key Features

• Platform Compatibility: Any handgun or long gun with a Glock-style rail or MIL-STD 1913 (Picatinny) rail; includes keys for Glock-style, Picatinny, Beretta 90two, S&W 99, S&W TSW, and Sig P320 rails
• Light Output: 1,000 lumens (high)
• Candela: 65,000 cd (high)
• Beam Distance: 510 meters (high)
• Run Time: 1.75 hours (high)
• LED Type: White LED
• Strobe Mode: Yes — double-tap momentary paddle within 0.4 seconds; can be disabled
• Switch: Ambidextrous momentary/steady On-Off paddle
• Battery: Two (2) CR123A 3V lithium batteries
• Material: 6000-series aluminum
• Finish / Coating: Black anodized
• Water Resistance: IPX7-rated waterproof
• Weight: 4.32 oz (122.5 g)
• Dimensions: 3.39 inches (8.61 cm) length
• Country of Manufacture: Assembled in USA

Use Case

• 65,000 candela and 510-meter beam distance support positive identification of threats or targets at extended range in low-light environments
• Wide beam pattern illuminates large areas for situational awareness beyond the direct point of aim
• One-handed snap-on and tighten interface allows attachment and detachment while keeping the support hand away from the muzzle
• Ambidextrous momentary/steady paddle switch enables both momentary pressure and full steady-on activation from either side of the firearm
• Strobe mode — activated by double-tap of the momentary paddle within 0.4 seconds — provides an additional disorientation option; mode can be disabled for duty or competition use
• IPX7-rated waterproof housing and live-fire-tested impact-resistant construction support use in adverse weather and high-recoil environments

Box / Package Contains

• One Streamlight TLR-1 HP tactical weapon light
• Two (2) CR123A 3V lithium batteries
• Rail key set (Glock-style, Picatinny, Beretta 90two, S&W 99, S&W TSW, Sig P320)
